Vented Leash Plug V4.0

Greenlight

  • $ 17.25


Vented Leash Plug V4.0

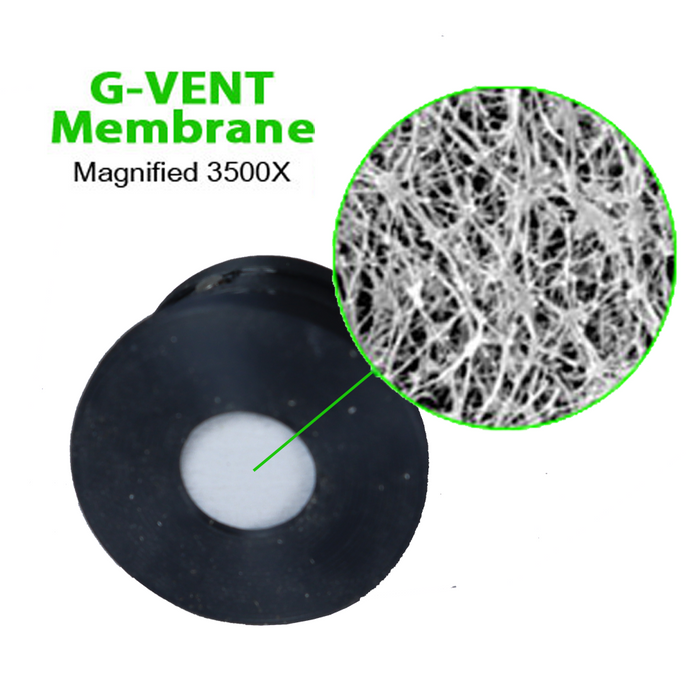

New improved "
G-VENT" Membrane developed by the Greenlight Engineering Team!
  • Micro-plug size (1" [25mm] diameter)
  • Double sealed G-vent membrane [14X more breathable than Gore-tex, waterproof up to 25 ft. depth]
  • Shielded, puncture proof membrane
Greenlight's  "VXV" Vented Leash Plug provides full time G-VENT venting of your EPS surfboards, Stand Up Paddle Boards, and hollow wood boards without an extra part to install in your deck.

EPS boards contain very small air pockets between the foam beads which expand and contract with changing temperatures. If a board is dinged while surfing and water gets in, additional heat (leaving your board on the beach or in a hot car) will cause the water to change phase in to steam and exert pressure on the fiberglass skin - pushing the glass away from the foam (delamination).

The VXV Version 4.0 is the slickest solution to relieving internal pressure in boards - venting EPS surfboards, SUPs, and hollow wood boards.

The G-Vent's poly mesh screen size allows air (steam) out of the board to relieve internal pressure but will not allow water molecules in! No need to open and close the vent as needed in other surfboard venting systems. Just install and forget it...

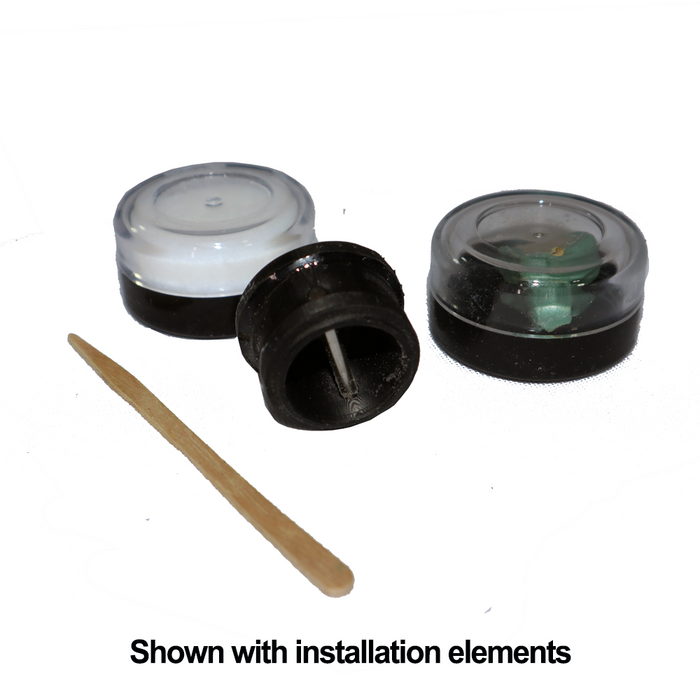

Each vented leash plug includes an install kit containing epoxy putty and tamping stick. Vent Install Video HERE

Available in Black, White, or Mahogany Color

Pictured Below:
  • 1# density EPS board
  • Balloon flanged and sealed to VXV
  • Filled with 16 oz. sea water and sealed. Digital thermometer installed
  • Locked in a car for 3 hours on a 95 degree F day
RESULTS
  • Internal board temperature = 127.5 degree F
  • Volume of steam vapor released through Greenlight's VXV = 1 cubic foot
  • Balloon diameter = 6 inches
  • Delaminations = ZERO


See the vent in action! (First Generation VXV V1.0 plug version)
  Here's a video of a hollow wood surfboard depressurizing on a hot day



Why is it called VXV V4.0?
Well, this is the 4th generation of our Vapor Xcape Valve. We keep improving them based on customer feedback.
