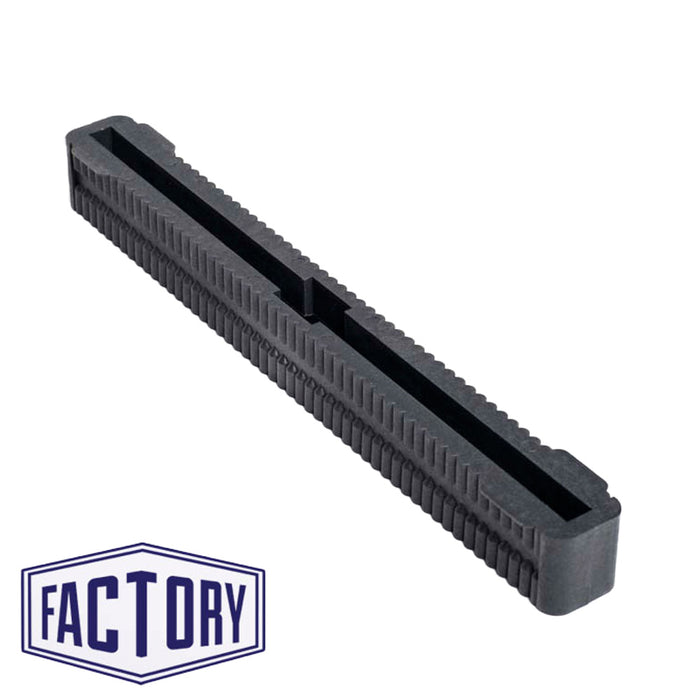

10.5" FACTORY Center Fin Channel Box
10.5" FACTORY Center Fin Box
Flangeless center fin box for longboards, Stand Up Paddleboards, single fin shortboards, etc.
This 10.5" Center fin box is installed before laminating or after the seal coat with the Longboard Center fin Router Jig Install Kit
Dimensions: 10.5" long x 1" deep
Specify Black or White color fin box when ordering
You can also make your own center fin router install jig templates below:
Print both pages full scale, tape together, transfer the pocket outline to 1/4"- 1/2" thick plywoodÂ
10.5" Center fin box router template for use with a 1/2" diameter router bit with 1/2" pattern bearing on top (page1, page2)
10.5" Center fin box router template for use with a 1/2" diameter router bit with 5/8" Outside diameter router collar (page1, page2)
10.5" Center fin box router template for use with a 1/2" diameter router bit with 3/4" Outside diameter router collar (page1, page2)
