SUP Goretex Deck Vent

Product image 1SUP Goretex Deck Vent
Product image 2SUP Goretex Deck Vent

Regular price $ 11.95 Sale price $ 18.95

SUP Goretex Deck Vent

Venting is a must for all EPS foam core SUPs and hollow wood boards.

Goretex vent keep the pressure equal to avoid board damage.

Position this vent 1/3 the board length from the nose in conjunction with a Vented Leash Plug for optimal venting.

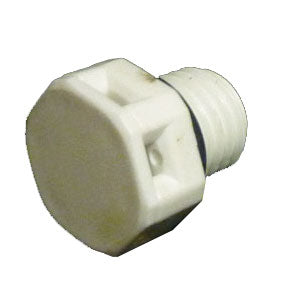

White vents are BARREL STYLE

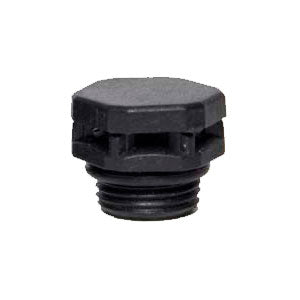

Black vents are FLANGE STYLE

There is no big difference in black or white vents, just the installation process.

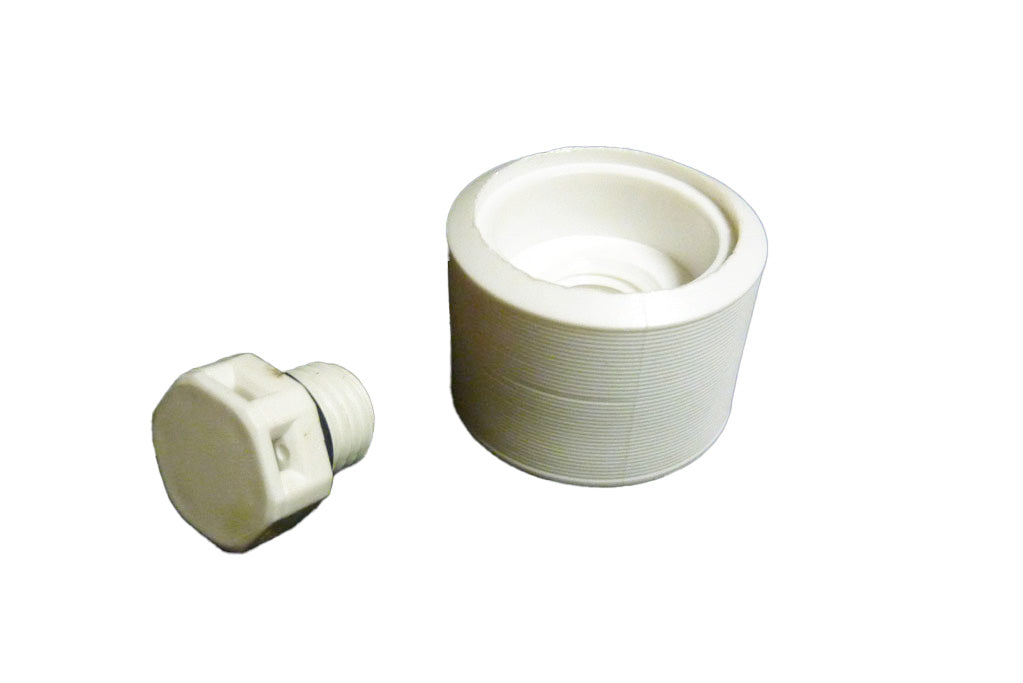

Installation of white BARREL STYLE vents:

1. Drill 1 1/4" hole x 7/8" deep

2. Remove Goretex scew vent (13mm socket)

3. Mix 1 oz Epoxy Resin and fill hole 1/2 way

5. Set housing into hole and fill resin around the perimeter

6. After resin cures, drill 3/16" diameter hole through bottom of housing into SUP foam

7. Screw Goretex vent back into housing until secure

Installation of black FLANGE STYLE vents:

1. Drill 1" hole x 1/2" deep and create a flange 1 1/4" diameter x 3/16" deep

2. Masking tape bottom hole if vent housing so no resin seeps into screw threads.

3. Remove Goretex scew vent (13mm socket)

4. Mix 1 oz Epoxy Resin and fill hole 1/2 way

5. Set housing into hole and fill resin around the perimeter

6. After resin cures, drill 3/16" diameter hole through bottom of housing into SUP foam

7. Screw Goretex vent back into housing until secure

QUESTIONS & ANSWERS

Ask a Question
  • Hi . do you post to New Zealand. Thanks

    Yes. We ship SUP Goretex vent plugs worldwide. International shipping costs are calculated in the webstore checkout.
