How to Build the Strongest Surfboards

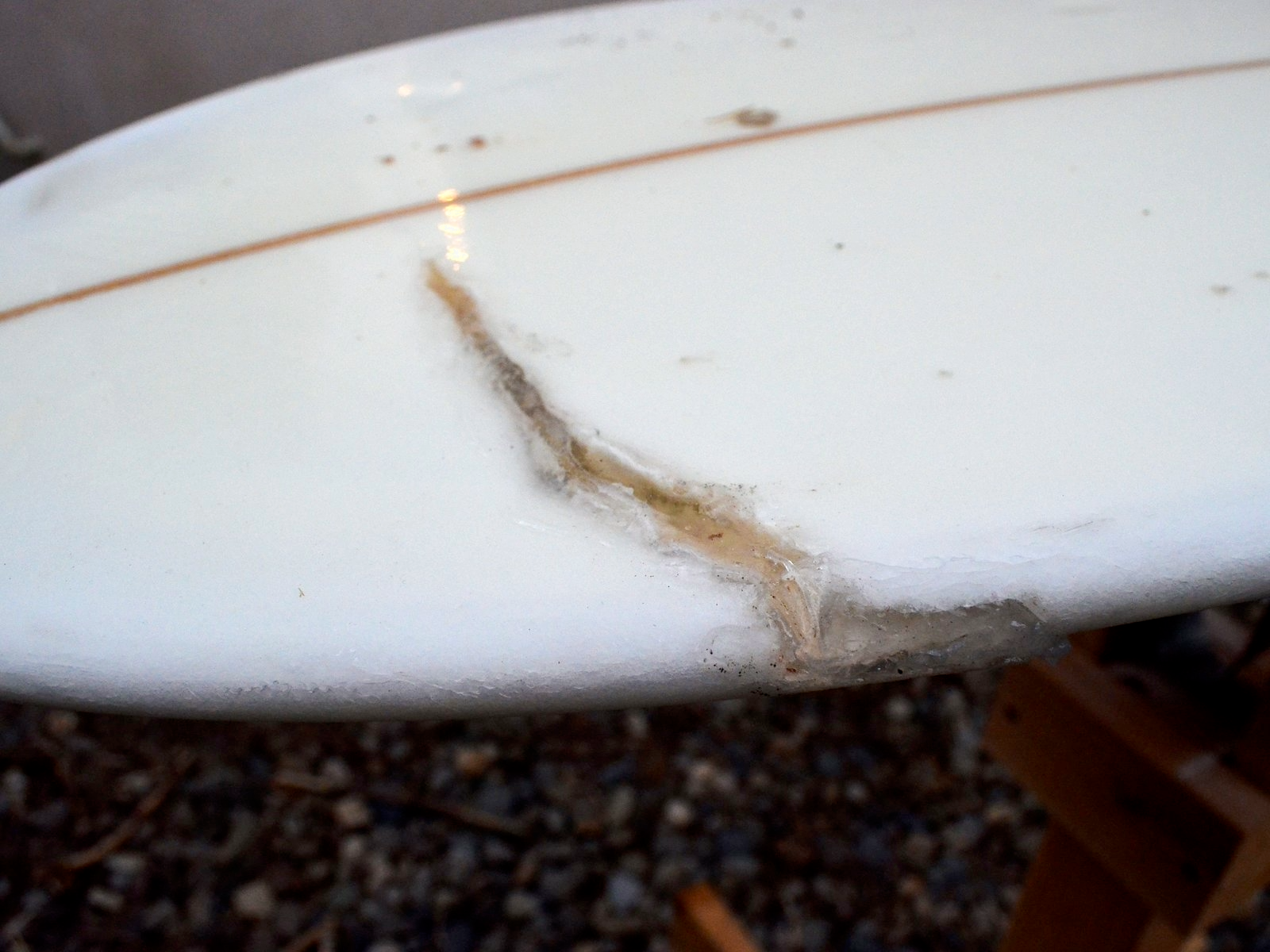

If you've ever snapped a board in a heavy set and wondered whether it could have been built stronger, the answer is almost always yes. Strength isn't one single decision you make in the shaping bay or the glassing stand—it's a stack of smaller decisions that all compound on each other: which resin you choose, how accurately you mix it, how you build up your glass schedule, and how far you carry your laps around the rail.
Get all of these right and you end up with a board that holds up dramatically better without necessarily weighing any more. Get just one of them wrong and it doesn't matter how good the rest of the build is—that's where the board is going to give out first. Let's walk through what actually adds strength to a surfboard and why.
EPOXY VS. POLYESTER
Epoxy resin is generally considered two to three times stronger than polyester resin, and it's not really a close contest. Epoxy has better tensile strength, better impact resistance, and it flexes and absorbs energy under load rather than cracking suddenly the way polyester tends to. This is one of the main reasons most builders chasing maximum strength lean toward epoxy over polyester.
That strength advantage only shows up if you execute the resin work correctly, and this is where a lot of home builders lose strength they didn't even know they were giving up. Greenlight Marine Grade Epoxies are mixed at a 2:1 ratio of resin to hardener, and unlike polyester, which is fairly forgiving if your catalyst percentage is a little off, epoxy chemistry is precise. Add too much or too little hardener and you don't just get a proportionally weaker board—you get soft spots that never fully cure.
A soft spot isn't just a cosmetic annoyance; it's a structural void in your laminate that will flex, print, and eventually delaminate under repeated load. This is exactly why we always recommend measuring your resin and hardener by weight on a digital scale rather than eyeballing it in a cup. Even a small ratio error can leave you with an area of the board that never reaches full cure strength.
Thorough mixing matters just as much as an accurate ratio. Under-mixed epoxy leaves streaks of unreacted resin or hardener sitting inside the laminate, and those streaks never fully cross-link into the strong, hardened resin you're after. Mix slowly and thoroughly for at least two minutes, and make sure you scrape the sides and bottom of your mixing cup—not just the surface—since that's usually where unmixed material likes to hide. A board that looks perfectly cured from the outside can still be sitting well below its rated strength if the mix wasn't accurate or thorough, so this step deserves the same care and attention you'd give to shaping a clean rail.
MULTIPLE THIN LAYERS BEAT ONE THICK LAYER
Here's a detail that surprises a lot of first-time builders. Two thin layers of fiberglass laminated together will come out stronger than one thick layer of the same total weight, typically by somewhere in the range of ten to twenty percent. Take three layers of 4 oz. E-glass (twelve ounces total) and it will outperform two layers of 6 oz. E-glass (also twelve ounces total). Or to put it in simpler terms, if an 8 oz. cloth existed, two layers of 4 oz. would beat a single layer of 8 oz. by that same margin, even though the actual glass weight sitting on the board is identical either way.
Why does splitting the same total weight into thinner layers make the laminate stronger? Thin cloth wets out more evenly and completely than thick cloth does. A single thick layer is prone to dry spots and resin-starved areas where the fiberglass never fully saturates, and any spot where the fiber isn't completely encapsulated in resin is a weak point waiting to happen.
Thinner cloths also conform more tightly to the foam and to each other as you layer them, which packs in more actual glass fiber relative to excess resin. Since fiber is the strong component in the laminate and resin is comparatively the weak one, more usable fiber per given weight of glass means more strength. Layering cloth also lets you vary the orientation between layers, so the laminate resists stress coming from more than one direction—where a single thick layer only has one weave geometry doing all the work. And multiple thin plies with resin between each one tend to spread stress through the laminate differently than a single thick ply, which generally improves resistance to delamination.
This is exactly the thinking behind common competition glass schedules. A 4 oz. plus 4 oz. deck layup (often just called a 4/4) is a deliberate strength decision as much as a weight-saving one, even though it happens to accomplish both at the same time.
FLEX AND RAIL LAPS
Strength and flex are often talked about as if they're purely a function of resin choice and cloth weight, but that's only part of the picture. How far your fiberglass laps around the rail is one of the biggest flex and stiffness controls a glasser has, and it works independently of whatever glass or resin you're using.
A shorter lap—where the fiberglass wraps just over the rail and stops—leaves more of the rail's natural flex unrestricted by overlapping layers. This produces a livelier, more responsive board, which is great for smaller waves and quick, snappy turns, but it comes with less resistance to buckling under heavy load.
A longer lap that's carried further across the rail toward the stringer stiffens the board considerably, because more overlapping layers of glass means more material resisting bending right where boards are most prone to buckle. This is a common move on big-wave guns, where builders will intentionally extend the lap to cut down on buckle risk under heavy impact, accepting a little less flex feel in exchange for a lot more security when the board is really loaded up.
This is also why you'll hear experienced big-wave shapers talk about extending the rail lap as a way to add strength without adding a whole extra layer of cloth across the entire board. You're reinforcing the highest-stress zone, right where the deck and bottom glass meet the rail, without a global weight increase across the rest of the board.
STRENGTH-TO-WEIGHT RATIO
More material generally means more strength. A heavier glass schedule with more layers and thicker cloth will nearly always outlast a feather-light layup in a straight durability contest, and lightweight boards are, as a rule, more fragile, since less material means less energy the laminate can absorb before something gives.
But strength-to-weight ratio—not raw strength on its own—is what most builders are actually chasing, because a board that's bombproof but paddles like a log never gets surfed in the first place.
Resin choice affects that strength-to-weight equation more than a lot of people expect. An EPS foam blank paired with epoxy resin generally produces the lightest strength-to-weight ratio among common constructions, while a polyurethane blank paired with epoxy resin is often cited as producing the strongest strength-to-weight combination available, since you're pairing a denser foam core with a tougher resin system.
Reinforcement materials are another way to add strength without proportionally adding weight. Carbon fiber strips, patches, or full rail wraps are the standard way to shore up known failure points like the tail, the stringer, or the fin area, without having to add a full extra layer of glass across the whole board. Even a small amount of carbon reinforcement in a high-load area can meaningfully boost compression strength right where it's needed most.
Cloth type matters here too, not just cloth weight. Warp glass, which has more fibers running nose to tail rather than rail to rail, adds lengthwise strength and is a good option if you tend to buckle boards or you're building something longer.
These are ways to gain real strength within a given weight budget rather than simply piling on more layers. And targeted reinforcement generally beats uniform reinforcement across the board. Extra deck patches under the foot zones, reinforced tail sections, and stringer-area reinforcement address exactly where boards actually break—whether that's heel dents, pressure cracks, or stringer snaps—rather than uniformly thickening the entire board and adding weight in places that didn't need it.
BRINGING IT TOGETHER
None of these factors work in isolation. A well-built board is really a set of decisions that compound on each other. Use epoxy, mix it accurately, and let it fully cure—since that alone is worth roughly double or triple the resin-level strength you'd get from polyester. Split your total glass weight into multiple thinner layers rather than one thick one, which nets you somewhere around a 10-20% strength gain for the same total weight sitting on the board. Extend your rail laps in the high-stress zones (like the tail, the stringer area, or anywhere on a big-wave gun) to control buckle resistance, and keep your laps shorter where you want the board to stay lively and responsive.
And think in terms of strength-to-weight rather than strength alone, using denser cores or targeted reinforcement in the areas that are actually prone to failure instead of overbuilding the entire board uniformly.
A board built with intention across all of these fronts is going to hold up dramatically better than one where a single element—a rushed resin mix, one thick layer of glass instead of two thin ones, or a lap that's too short in a high-load zone—becomes the point where everything eventually gives way.
