FCS II (FCS2) Essential Fin Boxes: A New, More Affordable Option for Board Builders

FCS II has become one of the most popular fin systems in the surfboard industry, and now there is a new option for shapers and glassers: FCS II Essential fin boxes.

The Essential boxes are designed to bring the convenience and performance of the FCS II system to a lower price point than the established FCS II Premium boxes.

For the everyday surfboard builder, the big question is simple:

Are the new Essential boxes good enough, or should you still spend the extra money on Premium boxes?

The answer depends largely on the board you're building and how much reinforcement you want around the fin box.

What’s the Difference?

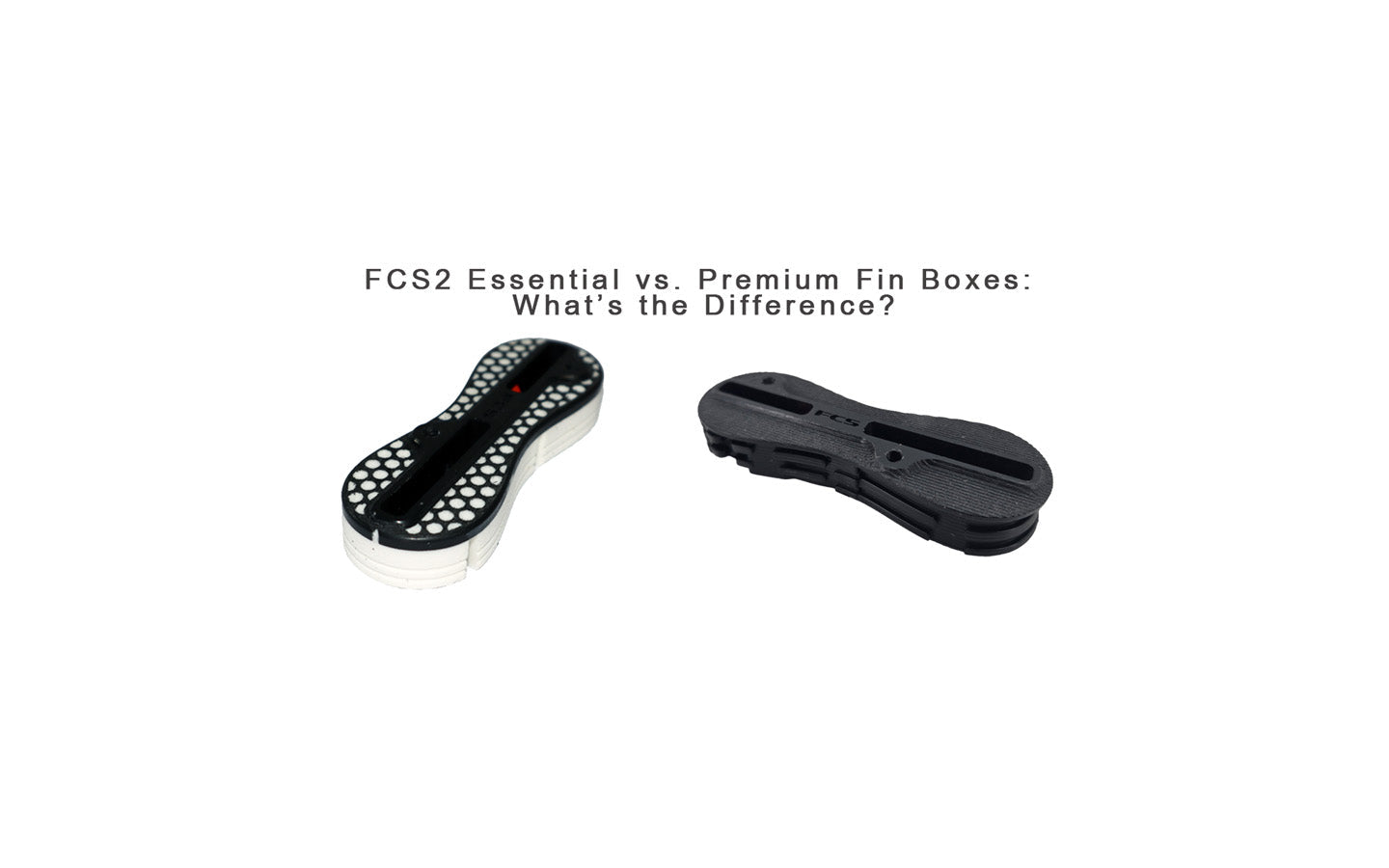

At first glance, the FCS II Essential and Premium boxes look very similar. Both use the same basic FCS II fin interface and are designed around the same tool-less fin system.

The major difference is what surrounds the box.

The FCS II Premium box incorporates a high-density foam structure around the perimeter of the box. This creates a larger, more substantial foam-to-box interface and is one of the reasons the Premium box has traditionally been considered the heavy-duty option.

The new Essential box eliminates that additional high-density foam perimeter, making the box simpler and less expensive.

That doesn't mean the Essential box is a completely different fin system. The important mechanical components and the way the fin engages the box remain based on the FCS II design.

Think of it this way:

Premium = maximum reinforcement around the box

Essential = simplified construction and lower cost

Strength: Premium Still Has the Advantage

If maximum fin-box strength is your primary concern, the Premium box is still the logical choice.

The Premium's high-density foam perimeter provides additional structure around the box and increases the area over which loads are transferred into the surrounding board.

That becomes particularly important when the fin is subjected to a hard sideways load.

Think about what happens during a hard turn. The fin is essentially acting like a lever. The farther that force is transferred into the board, the more important the surrounding foam and laminate structure become.

The Premium box was specifically designed around this principle. FCS describes its pre-glass installation as creating a tight foam-to-foam connection intended to maximize torsional strength.

The Essential box doesn't have that same high-density foam perimeter, so I would not recommend treating the two boxes as identical from a structural standpoint.

That said, FCS does not currently publish a numerical breaking-load comparison between the Essential and Premium boxes. So it would be misleading to claim a specific percentage difference in strength.

The real-world takeaway:

Premium: Best choice for maximum reinforcement, heavier surfers, high-performance boards, big-wave boards, and boards that are likely to experience significant fin impacts.

Essential: Excellent choice when keeping construction cost down is important and the board doesn't require the maximum possible fin-box reinforcement.

Installation: Both Use the FCS II Installation Method

One of the biggest advantages of the Essential boxes is that you're not giving up the basic FCS II installation system.

The boxes are installed before the board is glassed, rather than being installed after the laminate is finished.

The FCS II installation system uses a router jig and pattern bit to create the box cavity. Greenlight Surf Supply's FCS II installation kit, for example, uses an aluminum/polycarbonate router template and a specialized router bit designed to cut the cavity directly into the foam.

This allows the box to be installed directly into the foam and then laminated into the board.

The same basic installation principles apply:

1. Position the box accurately.

2. Route the cavity.

3. Set the box to the correct cant.

4. Bond the box into the foam.

5. Laminate over the installation.

6. Finish the deck and bottom normally.

The critical difference is that the Premium box gives you more high-density material surrounding the actual box.

One important point for shapers

The installation is only as strong as the surrounding structure.

A strong fin box installed into weak or poorly prepared foam is still a weak fin box installation.

Foam density, cavity fit, resin bond, fiberglass reinforcement, box alignment and the quality of the surrounding laminate all play a major role in the final result.

What Hasn't Changed?

This is the part that makes the Essential boxes particularly interesting.

The Essential name doesn't mean you're switching to an entirely different fin system.

The FCS II system still provides its signature features:

Tool-less fin installation

FCS II fins can be installed and removed without screws or a fin key. The fin is inserted at the front and pressed into the box until the mechanism locks it into place.

Titanium locking mechanism

The FCS II system uses an aerospace-grade titanium spring-loaded rod to apply pressure to the fin tab and secure the fin in the box.

Flush fin-to-board connection

The leading edge of the fin sits into the box and the fin base sits flush with the board surface, creating a clean connection between the fin and board.

Backward compatibility

One of the underrated features of FCS II is that the boxes can still be used with traditional two-tab FCS fins by using the appropriate screws/infill components.

Multiple cant options

FCS II boxes are available in different cant angles for different positions and board designs, including 0°, 3°, 5° and 9° configurations.

So from the surfer's perspective, an Essential box still provides the familiar FCS II experience.

Essential vs. Premium: Quick Comparison

*With the appropriate compatibility hardware.

Which One Should You Use?

For most everyday surfboards, the Essential box makes a lot of sense.

If you're building a standard shortboard, funboard or everyday board and you're looking for a way to reduce component costs without abandoning the FCS II system, Essential boxes are an attractive option.

They're especially interesting for production builders where the cost of every component matters.

But there are situations where the Premium box is still worth the additional money.

Choose Premium when:

• You're building a high-performance custom board.

• The board will be surfed hard.

• The surfer is heavier or particularly powerful.

• You're building a big-wave board.

• Maximum fin-box reinforcement is important.

• You're trying to build the strongest possible installation.

• The board has a very thin tail or limited foam surrounding the box.

Choose Essential when:

• You're building an everyday shortboard.

• You're producing boards where component cost matters.

• You want the FCS II system without paying for the additional reinforcement.

• The board isn't expected to see unusually high fin loads.

• You're comfortable providing appropriate fiberglass reinforcement during the installation.

One Thing Shapers Should Pay Attention To

The introduction of the Essential box is actually a good reminder of something experienced board builders already know:

The fin box isn't the entire fin-box installation.

The box is only one part of the structure.

The foam surrounding it, the resin used to bond it, the fiberglass schedule, the size and shape of the reinforcement patch and the quality of the installation all contribute to the final strength.

A Premium box can provide a stronger starting point, but a carefully engineered Essential installation can still be a very capable surfboard fin system.

For production boards, this opens up some interesting possibilities.

Instead of automatically paying for the maximum-strength box on every board, shapers can select the box based on the intended use of the board.

The Bottom Line

The new FCS 2 Essential fin boxes aren't really about replacing the Premium box.

They're about giving board builders another option.

The Premium remains the choice when maximum reinforcement and torsional strength are the priority. Its high-density foam perimeter gives the box a larger structural interface with the surrounding foam and makes it particularly attractive for demanding boards.

The Essential box takes a simpler approach.

You still get the FCS II tool-less fin system, the same basic fin interface and the convenience that has made FCS II so popular — but without the additional high-density foam perimeter and at a lower component cost.

For a high-end custom board where strength is the overriding concern, we'd still lean toward Premium.

For everyday boards and production surfboards where performance, reliability and cost all matter, Essential is a very interesting new option.
